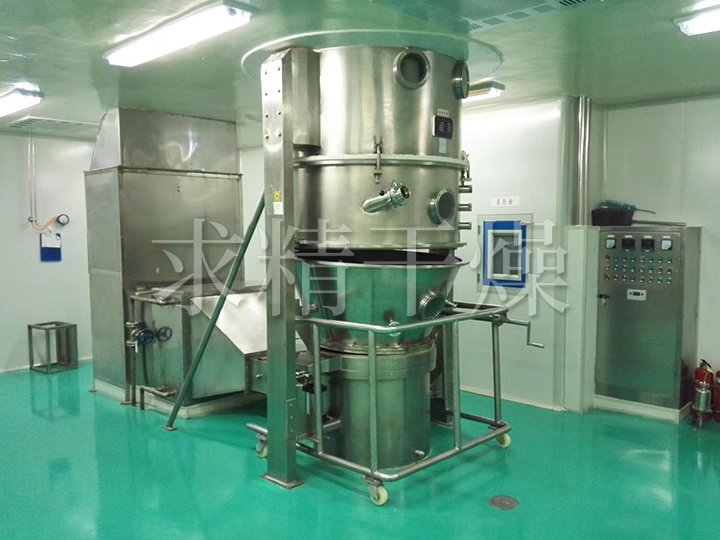

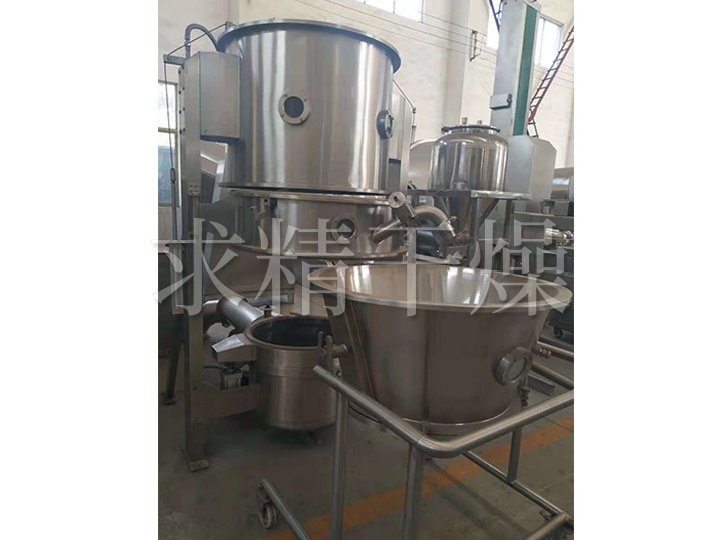

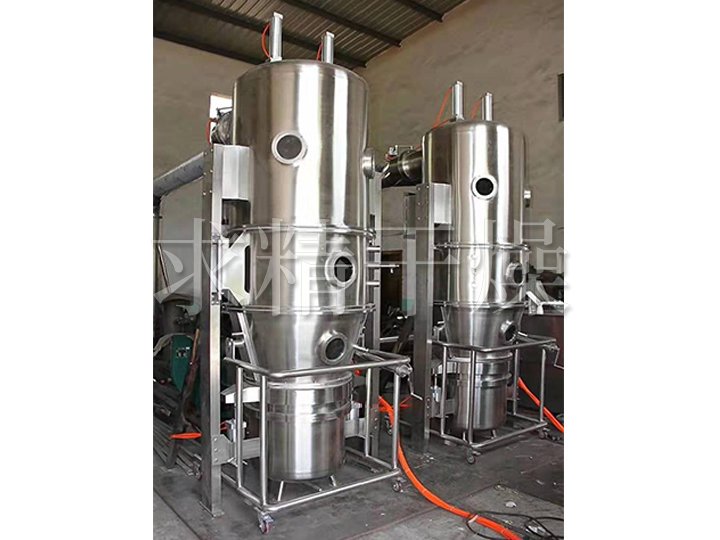

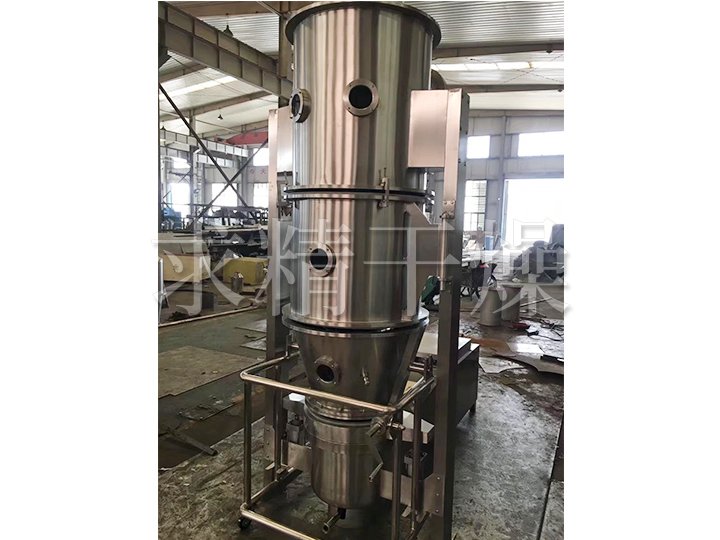

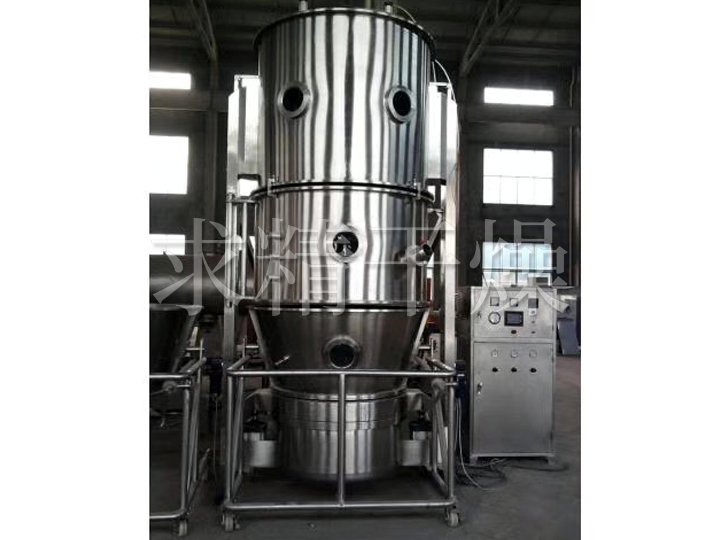

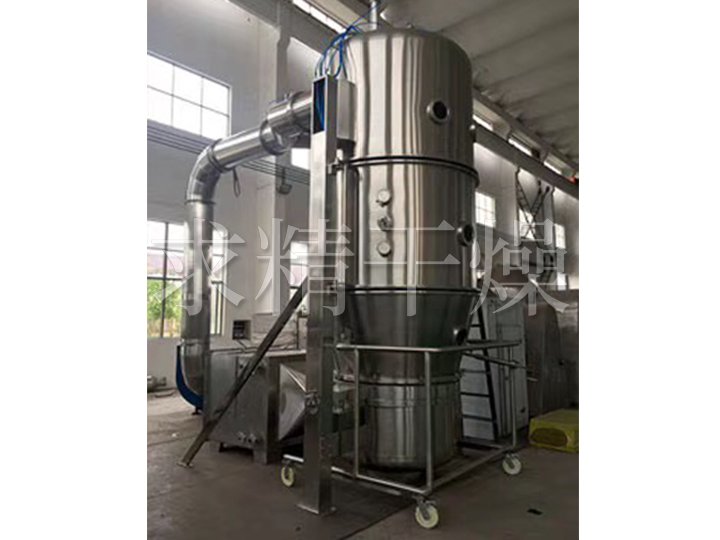

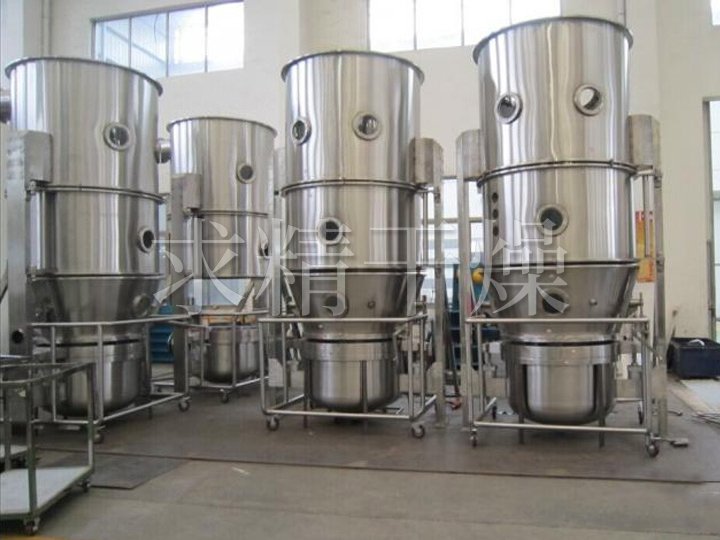

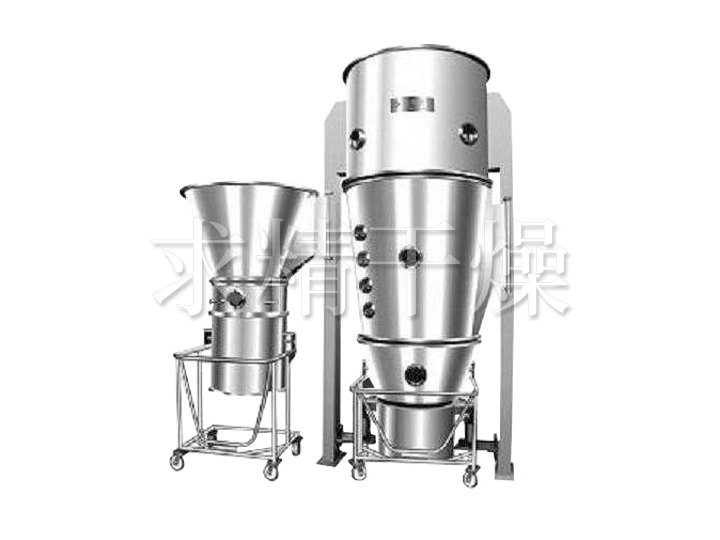

Overview：The principle of the FL, FG series vertical boiling granulating dryer is that the material powder particles are in an annular fluidized state in the raw material container (fluidized bed), and are preheated and mixed by the heated air after purificati…
ConsultingApplication field
◎Pharmaceutical granulation and coating
Granulation: Tablets, granules, granules for capsules.
Coating: granule, pill protective layer, color preparation, slow release, film, enteric coating.
◎Food granulation and coating
Sugar, coffee, cocoa powder, cream, powdered juice, amino acids, seasonings, puffed food.
◎Pesticide, pigment, dye granulation
◎Drying powder, granule and block materials
Performance characteristics
◎Through powder granulation, improve fluidity and reduce dust flying;
◎Improve the solubility of powder through granulation;
◎Mixing-granulating-drying-complete in one machine (one-step granulation);
◎Using antistatic filter material, the equipment is safe to operate;
◎Binder atomizer adopts multi-fluid spray gun, uniform mist particles, and the qualified rate of finished products is greatly improved;
◎The equipment has no dead corners, loading and unloading is light and fast, and it is cleaned.

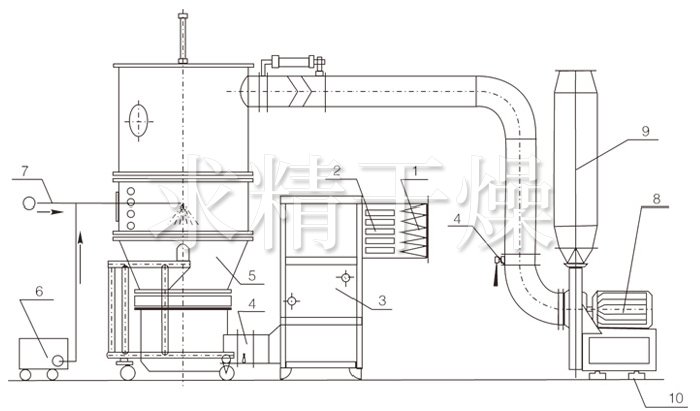

Schematic
1. Medium efficiency filter 2. Sub-high efficiency filter 3. Heater 4. Air regulator 5. Fluidized bed 6. Infusion pump 7. Compressed air 8. Induced draft fan 9. Muffler 10. Shock absorber
Technical specifications
| specification | 3 | 5 | 15 | 30 | 45 | 60 | 90 | 120 | 150 | 200 | 300 | 500 |
| capacity | 12 | 22 | 45 | 100 | 155 | 220 | 300 | 420 | 530 | 660 | 1000 | 1500 |
| Processing capacity | 1.5/4.5 | 4/6 | 10/20 | 15/45 | 25/65 | 40/80 | 60/120 | 80/160 | 90/200 | 100/300 | 150/450 | 300/300 |
| Fan power | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 18.5 | 22 | 30 | 37 |
| Steam consumption | 12 | 23 | 42 | 70 | 99 | 141 | 169 | 211 | 251 | 282 | 366 | 451 |
| Compressed air consumption | 0.3 | 1.3 | 0.3 | 0.4 | 0.4 | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | 1.3 | 1.5 |
| noise | （Fan isolation installation）≤75 | |||||||||||
| Dimensions |
1.0 ×0.55 ×1.8 |
1.2 ×0.6 ×2.1 |
1.25 ×0.9 ×2.1 |
1.6 ×0.9 ×2.3 |
1.65 ×1.1 ×2.4 |
1.85 ×1.25 ×3 |
1.85 ×1.25 ×3 |
2.2 ×1.65 ×3.1 |
2.27 ×1.72 ×3.1 |
2.34 ×1.9 ×3.5 |
2.8 ×1.9 ×3.8 |
3 ×2.55 ×4.2 |
Note: FG without granulating part
