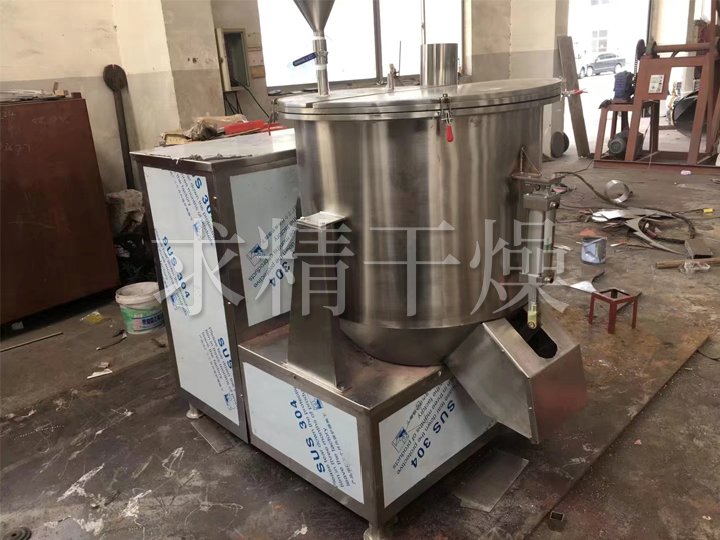

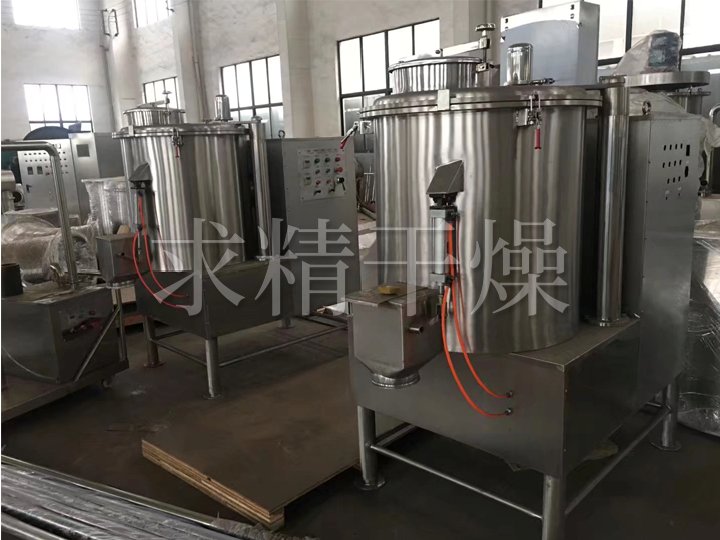

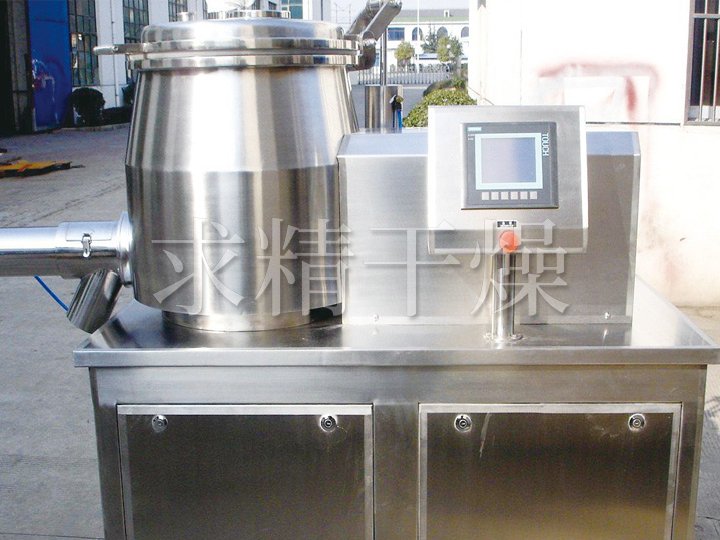

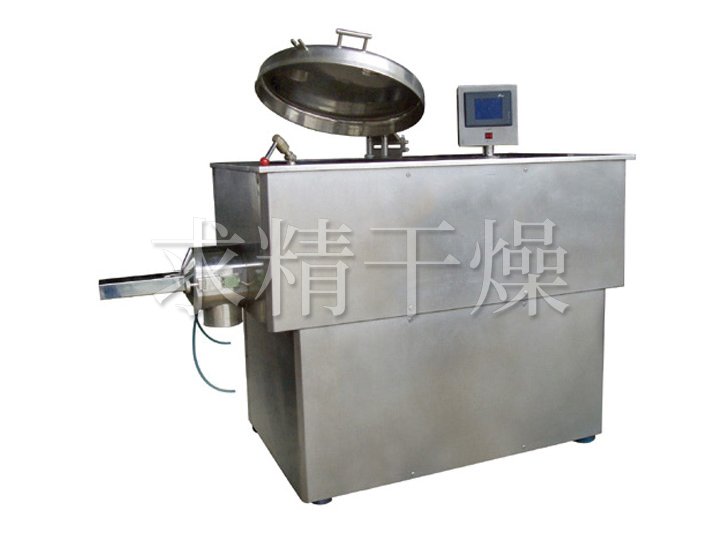

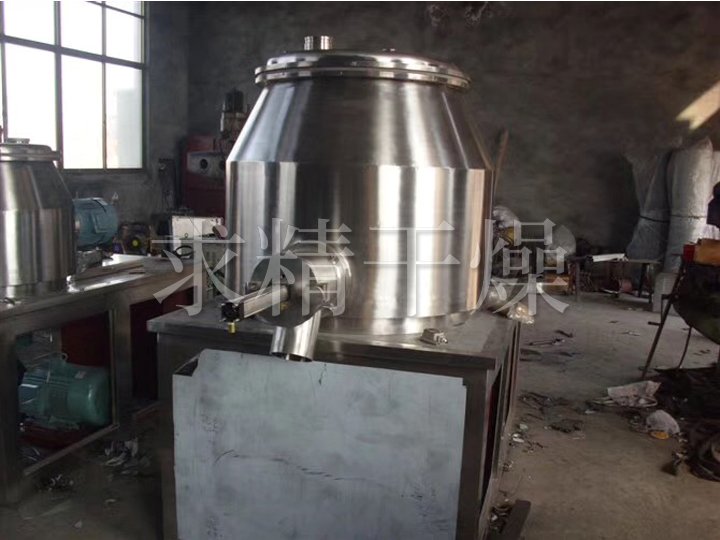

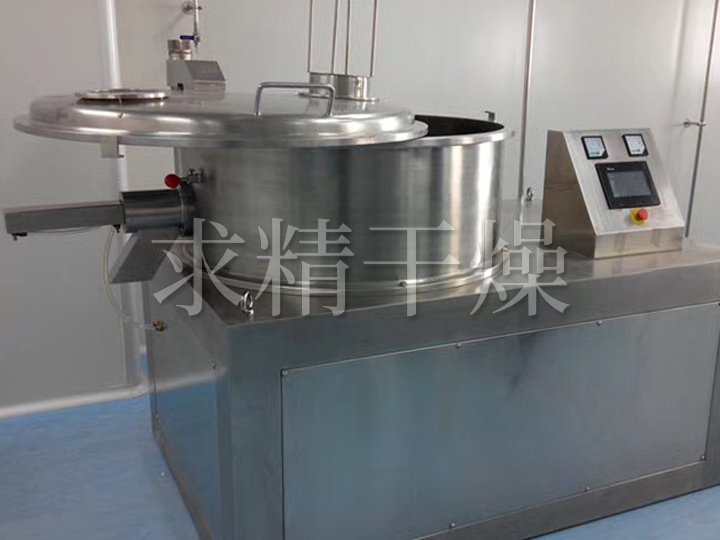

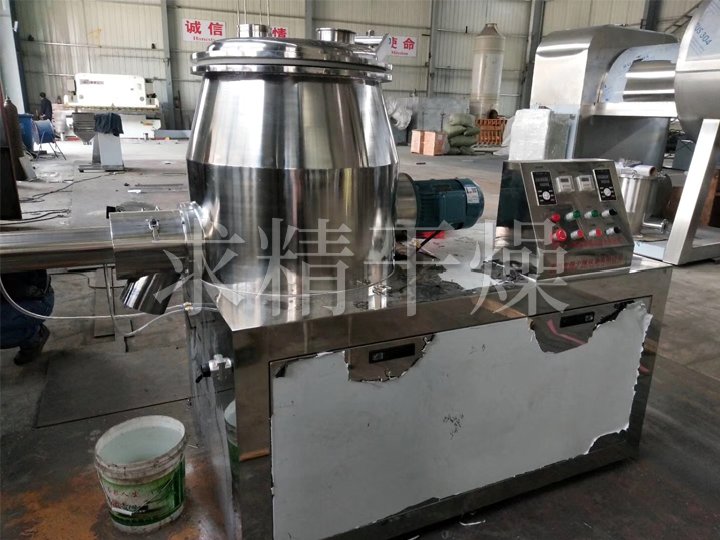

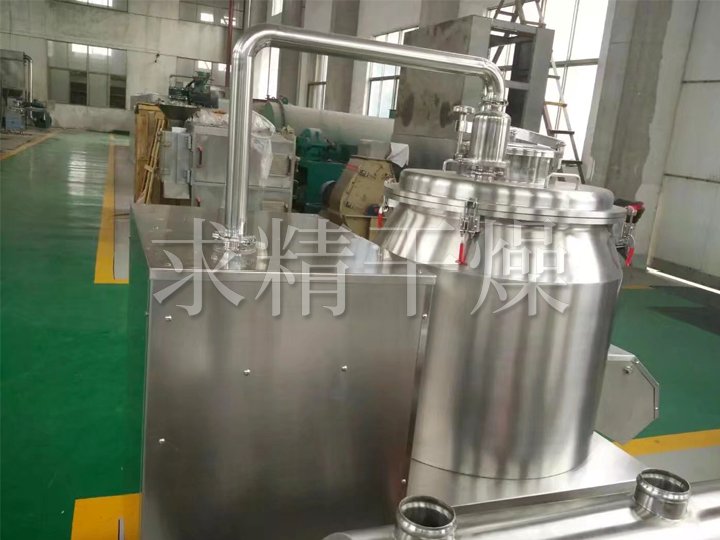

Overview：GHL series high-speed mixing and granulating machine is made by mixing powder material and binder in a cylindrical container from the bottom mixed slurry into a moist soft material,
Consultingworking principle

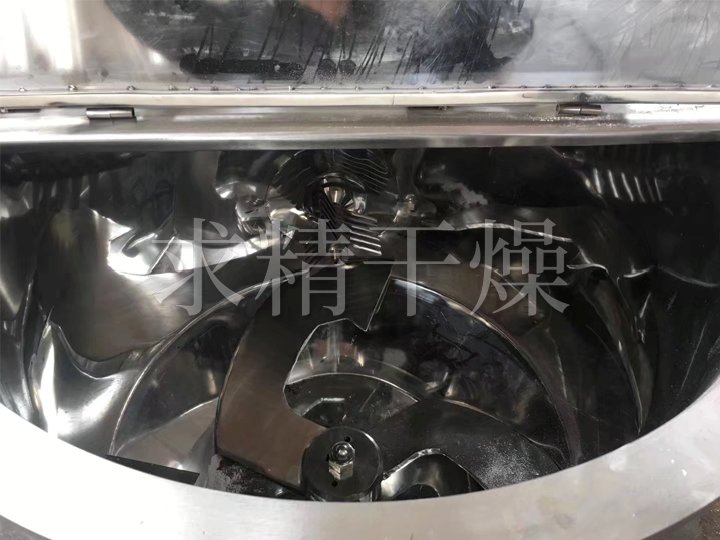

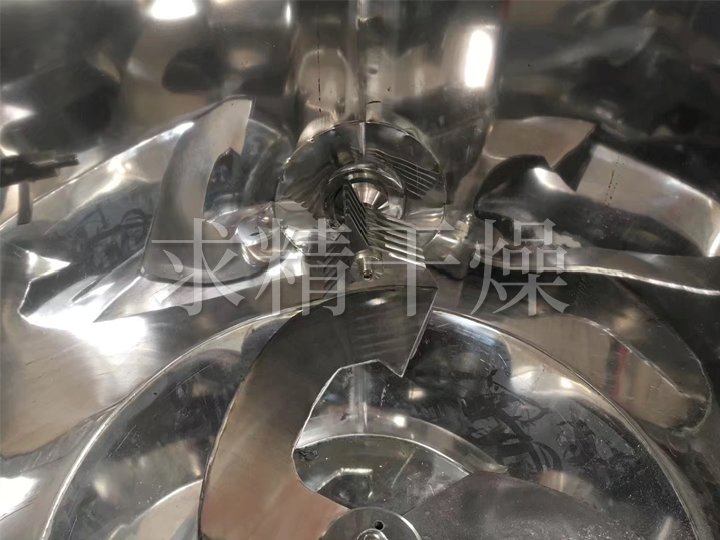

The powder material and the binder are fully mixed from the bottom mixed slurry in a cylindrical container to form a wet soft material, and then cut into uniform wet particles by a side high-speed crushing paddle.
Performance characteristics
◎This machine adopts a horizontal cylindrical structure with a reasonable structure.
◎Pneumatic and sealed drive shaft, which can be switched to water during cleaning.
◎Fluidized granulation, the granulation is approximately spherical, with good fluidity.
◎Compared with the traditional process, 25% binder is reduced, and the drying time is shortened.
◎Each batch only needs 2 minutes for dry mixing and 1-4 minutes for granulation. The work efficiency is increased by 4-5 times compared with the traditional process.
◎Completed in the same closed container, dry mixing-wet mixing-granulation, the process is shortened.
◎The entire operation has strict safety protection measures.
◎The jacket type can be made according to user requirements.
Technical specifications
| model | A | B | C×D | E | F |
| 50 | 320 | 950 | 1250×800 | 970 | 1650 |
| 150 | 420 | 1000 | 1350×800 | 1050 | 1750 |
| 200 | 500 | 1100 | 1650×940 | 1450 | 2050 |
| 250 | 500 | 1160 | 1650×940 | 1400 | 2260 |
| 300 | 550 | 1200 | 1700×1000 | 1400 | 2310 |
| 400 | 670 | 1300 | 1860×1100 | 1550 | 2410 |
| 600 | 750 | 1500 | 2000×1230 | 1750 | 2610 |
| name | model | ||||||
| 50 | 150 | 200 | 250 | 300 | 400 | 600 | |
| VolumeL | 50 | 150 | 200 | 250 | 300 | 400 | 600 |
| Yield kg/batch | 15 | 50 | 80 | 100 | 130 | 200 | 280 |
| Mixing speed r.p.m | 200/400 | 180/270 | 180/270 | 180/270 | 140/220 | 106/155 | 80/120 |
| Hybrid power kw | 4/5.5 | 6.5/8 | 9/11 | 9/11 | 13/16 | 18.5/22 | 22/30 |
| Cutting speed r.p.m | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 |
| Cutting power kw | 1.3/1.8 | 2.4/3 | 4.5/5.5 | 4.5/5.5 | 4.5/5.5 | 6.5/8 | 9/11 |
| Compressed air consumption m3/min | 0.6 | 0.9 | 0.9 | 0.9 | 1.1 | 1.5 | 1.8 |
| weight kg | 500 | 800 | 1000 | 1300 | 1800 | 2200 | 2600 |
