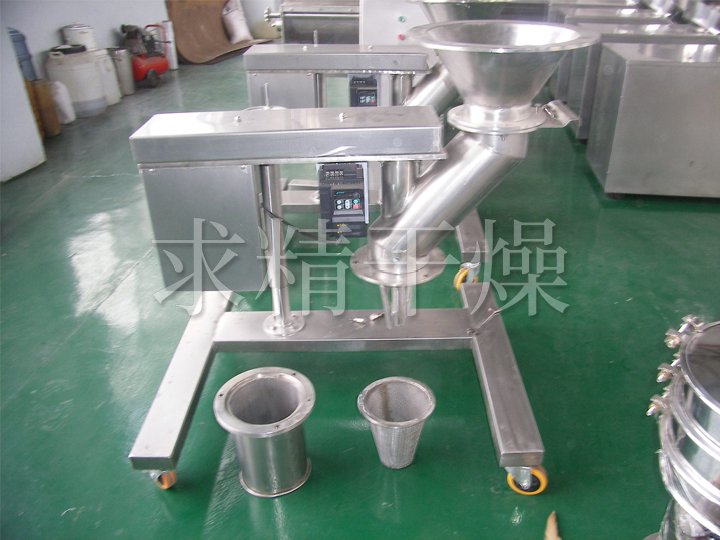

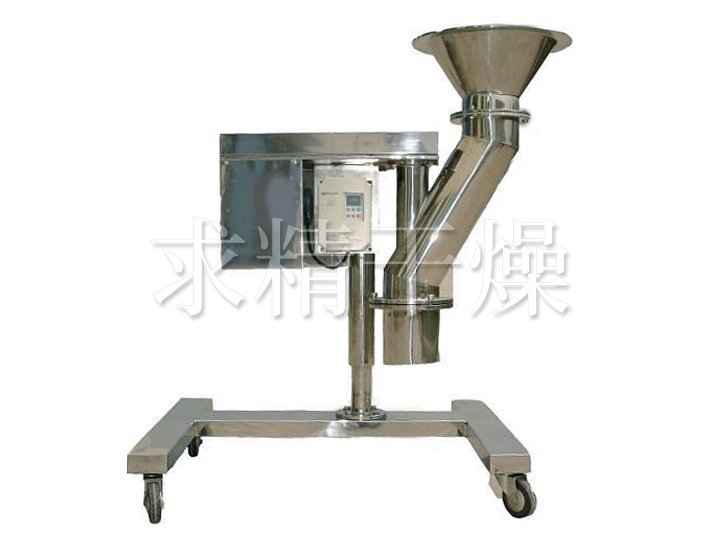

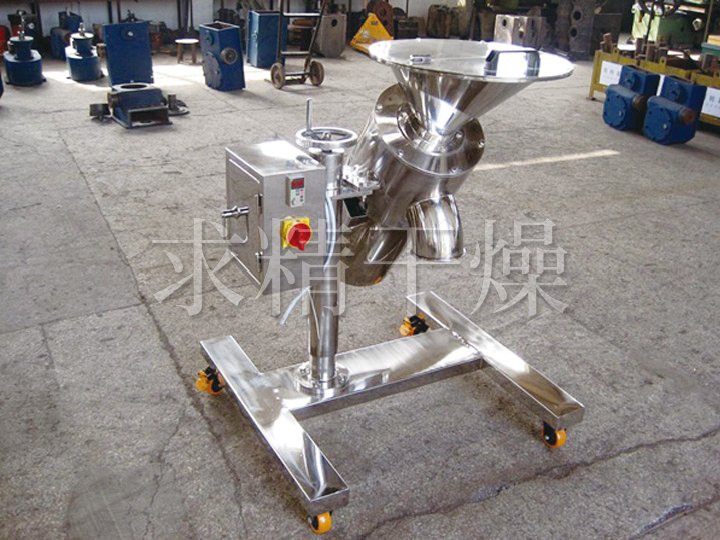

Overview：The KZL series rapid granulator (pulverizer) is widely used in the pharmaceutical, chemical, and food industries with good results. The machine has reasonably designed filters and rods that can crush large and fragile materials.
Consultingworking principle
◎Low heat during work. Less dust.
◎The stator screen is made of stainless steel and is not easily damaged.

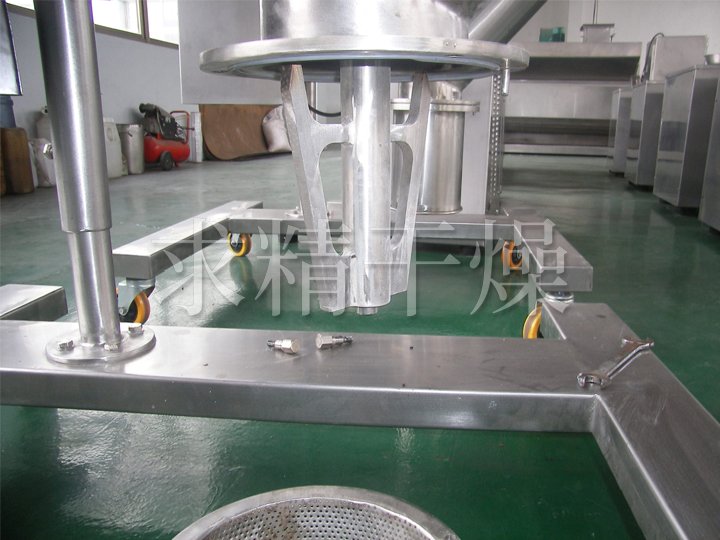

◎The gap between the crushing knife and the screen is adjustable.
◎Can handle sticky, gum-like, hot and wet materials.
Adapt to materials
◎Dry and wet granules are homogenized and granulated.
◎Crushing and granulating agglomerate materials.
◎Wet material granulation.
◎Crushing of heat-sensitive materials.
Technical specifications
| model | unit | 100 | 180 | 300 |
| Stator diameter | mm | 100 | 180 | 300 |
| Stator length | mm | 98 | 178 | 298 |
| Production capacity | kg/h | 20-150 | 100-1500 | 200-2500 |
| power | kw | 1.1 | 1.5 | 3 |
| Rotating speed | rmp | 180-1400 | 180-1400 | 200-1400 |
