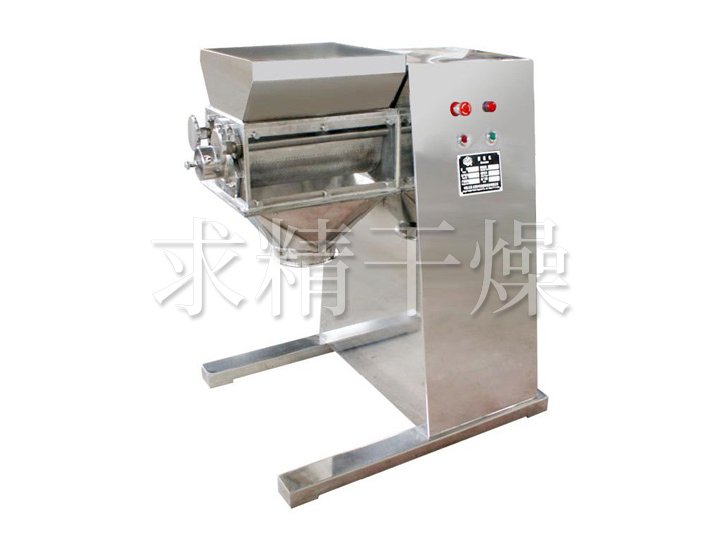

Overview：YK series swing type pellet machine is mainly used to manufacture various specifications of pellets in the pharmaceutical, chemical, food and other industries. After drying, it is used to press various shaped products.
Consultingworking principle
Make the mixed material into particles of the required size, or break the agglomerated material into small particles.
Adapt to materials
This machine is suitable for granulating in the pharmaceutical, chemical, food, solid beverage and other industries.
Technical specifications
| model | YK160 | YK320 |
| Production capacity | 50-200 kg/h | 50-400 kg/h |
| Motor Power | 2.2kw | 7.5kw |
| Drum speed | 65rpm | 65rpm |
| Swing angle | 360o | 360o |
| Drum diameter | Φ160mm | Φ320mm |
| weight | 450kg | 750kg |
| Dimensions | 1000×800×1300m | 1500×1200×1500m |
