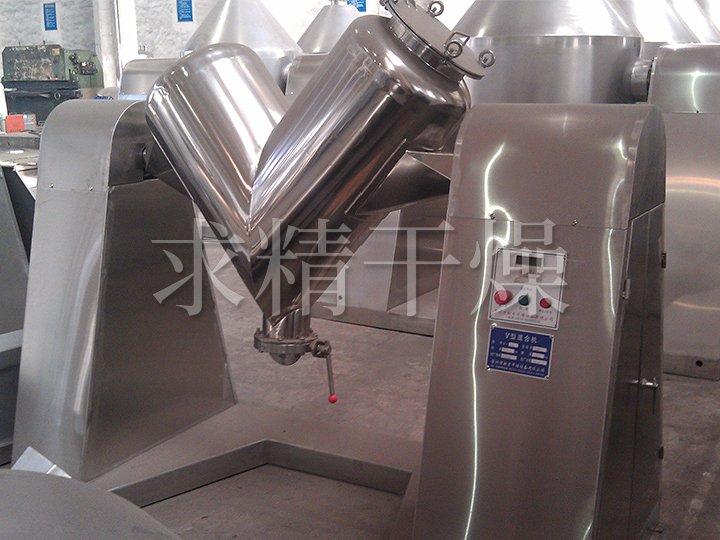

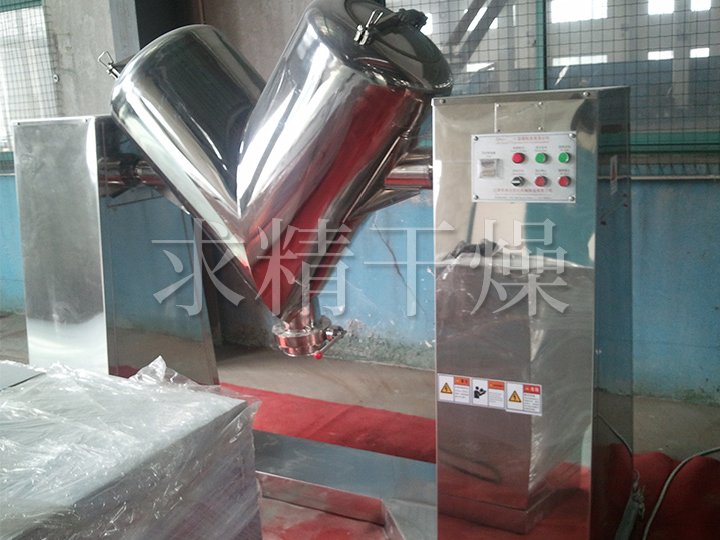

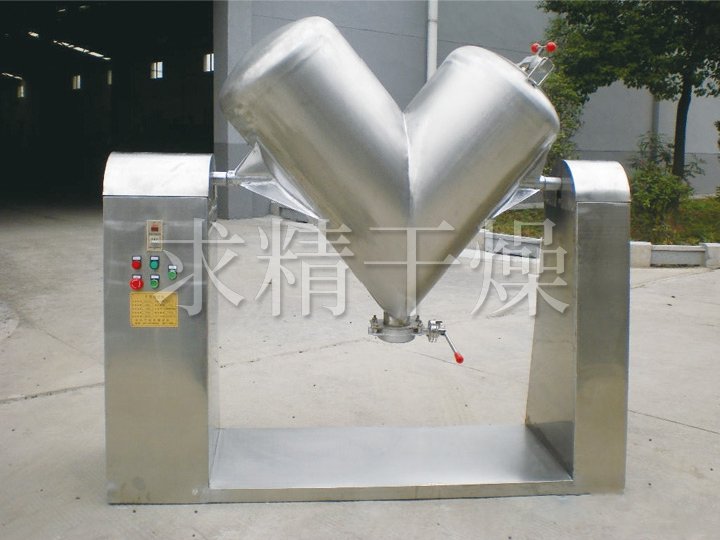

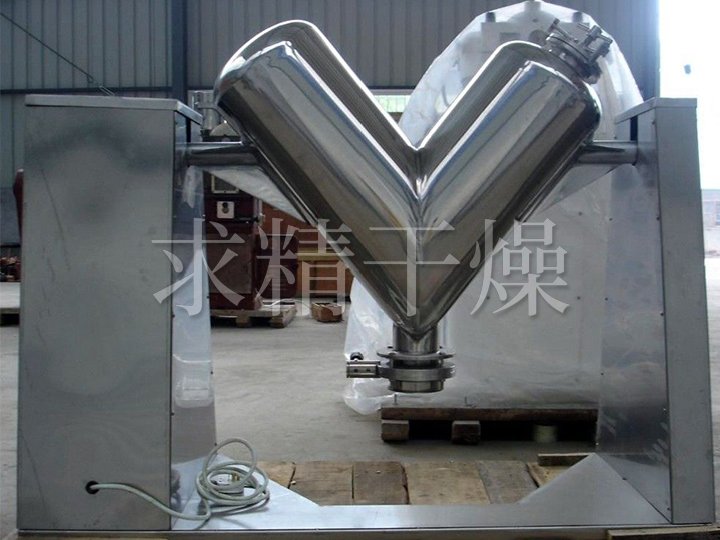

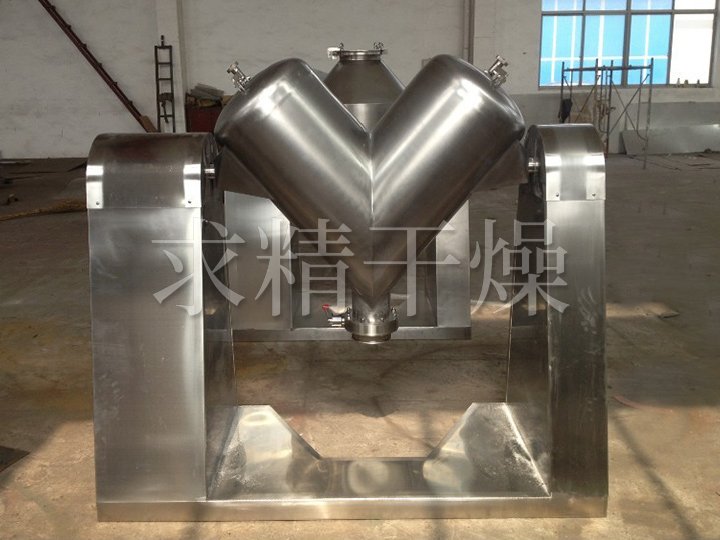

Overview：The mixing barrel of the ZKH(V) series mixer has a unique structure, high mixing efficiency, no dead ends, the barrel is made of stainless steel, the inner and outer walls are polished, the appearance is beautiful,
ConsultingPerformance characteristics
The mixing cylinder has a unique structure, high mixing efficiency, no dead ends, the cylinder body is made of stainless steel, the inner and outer walls are polished, the appearance is beautiful, the mixing is uniform, and the use is wide.
Adapt to materials
This machine is used for the mixing of dry materials and particles in the pharmaceutical, chemical, food, metallurgical and other industries.
Technical specifications
| Specifications\Project | Total volume L | Working volume L | Feeding amount kg | Feeding speed rpm | power kw | weight kg |
| 0.05 | 50 | 25 | 15 | 25 | 0.55 | 500 |
| 0.15 | 150 | 75 | 45 | 20 | 0.75 | 650 |
| 0.3 | 300 | 150 | 90 | 20 | 1.1 | 820 |
| 0.5 | 500 | 250 | 150 | 18 | 1.5 | 1250 |
| 1 | 1000 | 500 | 300 | 15 | 3 | 1800 |
| 1.5 | 1500 | 750 | 450 | 12 | 4 | 2100 |
| 2 | 2000 | 1000 | 600 | 12 | 5.5 | 2450 |
| 3 | 3000 | 1500 | 900 | 9 | 5.5 | 2980 |
| 4 | 4000 | 2000 | 1200 | 9 | 7.5 | 3300 |
| 5 | 5000 | 2500 | 1500 | 8 | 7.5 | 3880 |
| 6 | 6000 | 3000 | 1800 | 8 | 11 | 4550 |
| 8 | 8000 | 4000 | 2400 | 6 | 15 | 5200 |
| 10 | 10000 | 5000 | 3000 | 6 | 18.5 | 6000 |
