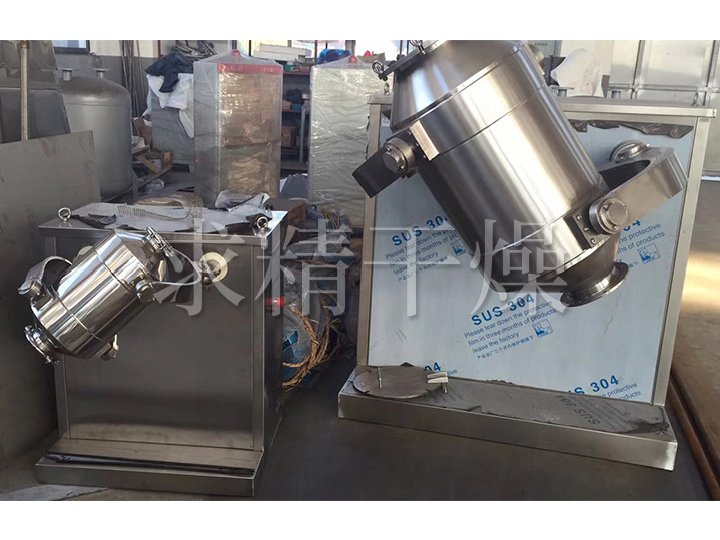

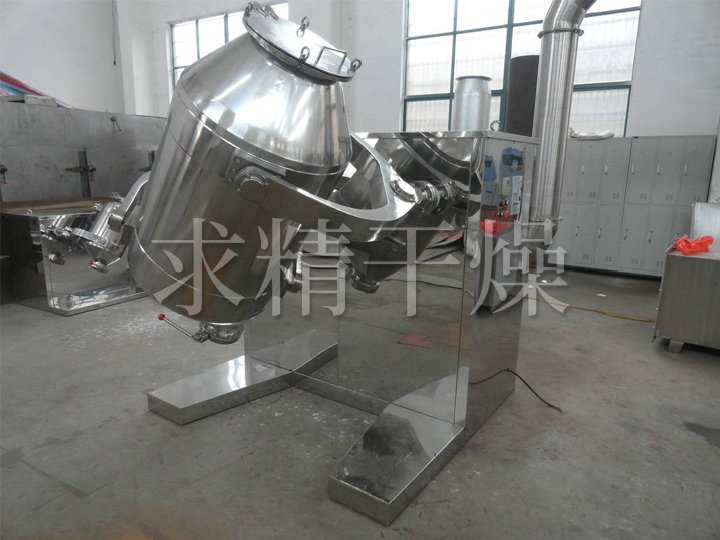

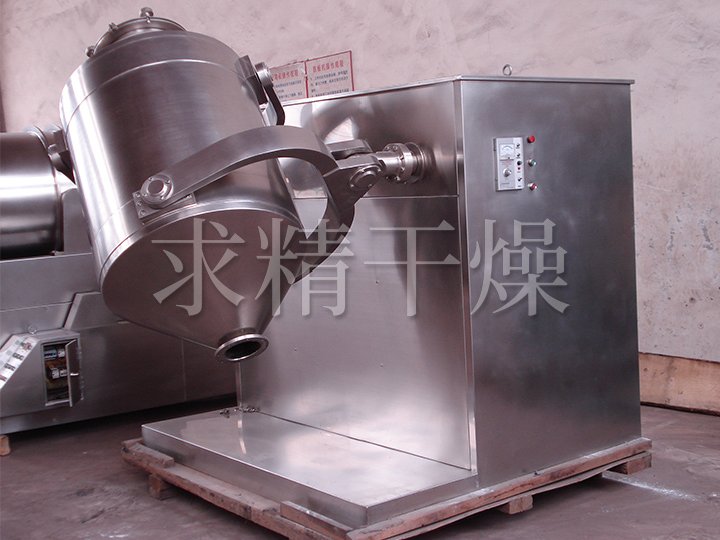

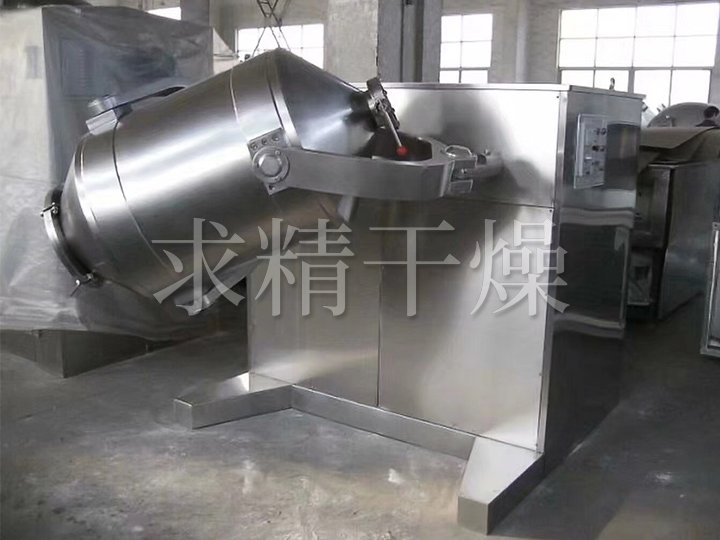

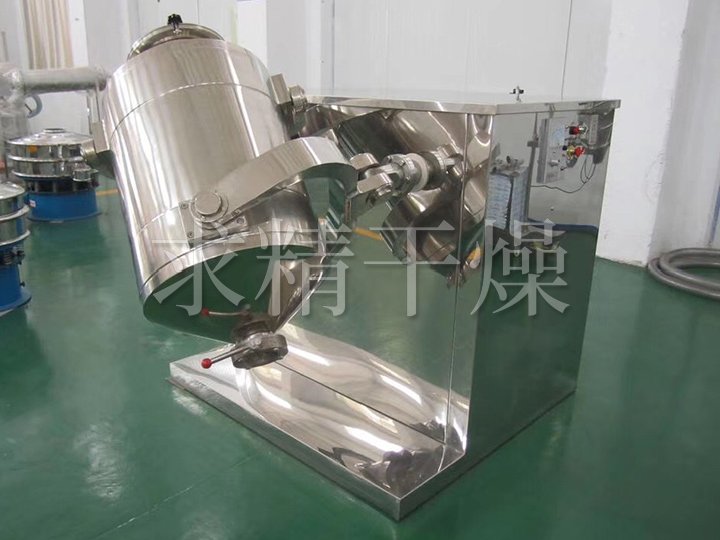

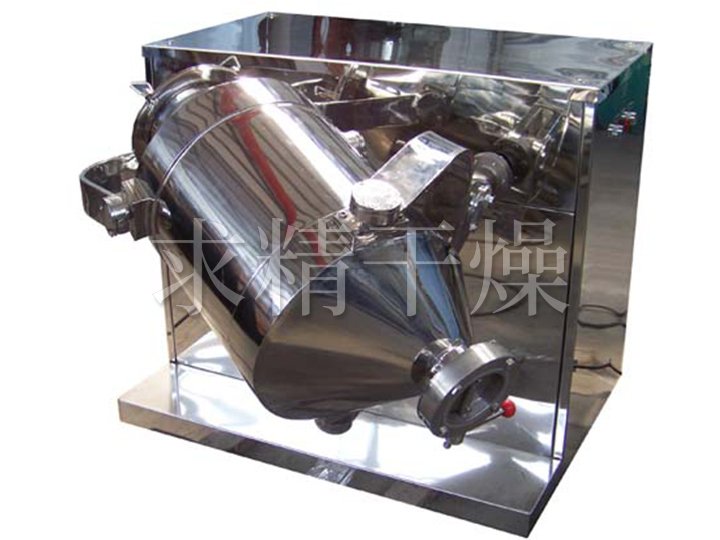

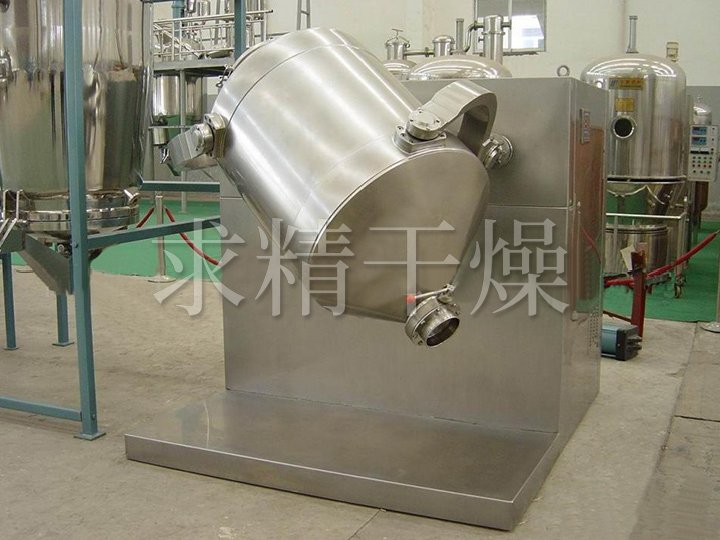

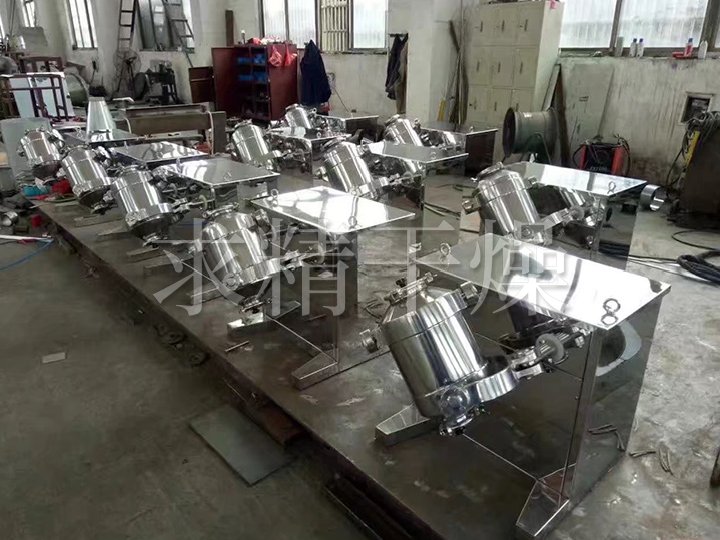

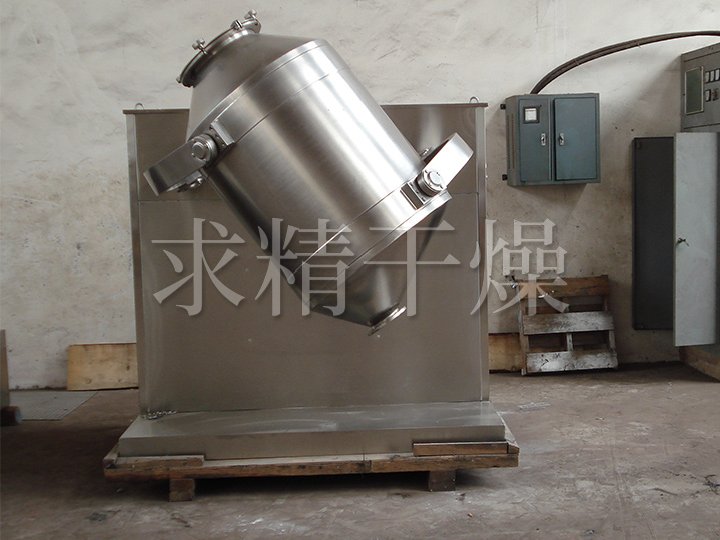

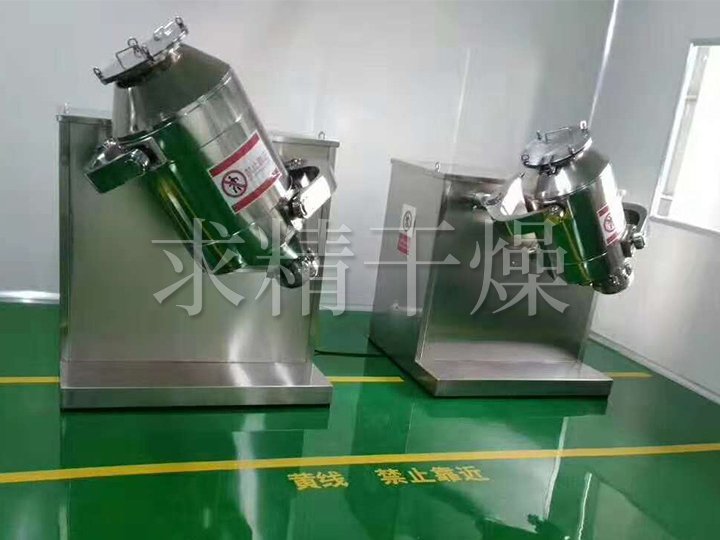

SYH series three-dimensional motion mixer

Overview:The SYH series three-dimensional motion mixer has multi-directional movement of the mixing barrel, which makes the material in the barrel more cross-mixing points, high mixing effect, uniformity can reach 99.9% or more,

Consulting

Performance characteristics


Driven by the active shaft, the loaded cylinder makes repeated translation, rotation, and tumbling motions to promote the three-way compound movement of the material along the cylinder, thereby realizing the mutual flow, diffusion, accumulation, and accumulation of various materials. Doping. In order to achieve the purpose of uniform mixing.


Adapt to materials


◎The mixing barrel of this machine moves in multiple directions, the material has no centrifugal force, no specific gravity segregation, layering, and accumulation. The weight ratio of each component can be wide, and the mixing rate is high. It is the ideal product among various mixing machines at present.
◎The filling rate of the cylinder is large, up to 90% (only 50% for ordinary mixers), with high efficiency and short mixing time.
◎All parts of the cylinder are arc transitions, which have been precisely polished.
◎Used in pharmaceutical, chemical, food, light industry, electronics, machinery, mining and metallurgy, national
◎High uniformity mixing of powdery and granular materials from industry and various scientific research units.


Schematic
三维运动混合机结构示意图

Technical specifications

model
model SYH-5 SYH-15 SYH-50 SYH-100 SYH-200 SYH-400 SYH-600 SYH-800 SYH-1000 SYH-1200 SYH-1500 SYH-2000
Barrel volume(L) 5 15 50 100 200 400 600 800 1000 1200 1500 2000
Maximum loading volume(L) 4.5 13.5 45 90 180 360 540 720 900 1080 1350 1800
Maximum loading weight(kg) 1.5-2.7 4-8.1 15-27 30-54 50-108 100-216 150-324 200-432 250-540 300-648 400-810 500-1080
Spindle speed(r/min) 0-20 0-20 0-20 0-20 0-15 0-15 0-13 0-10 0-10 0-9 0-9 0-8
Motor Power(kw) 0.25 0.37 1.1 1.5 2.5 4 5.5 7.5 11 11 15 18.5
size(mm) 600×1000
×1000
800 ×1200
×1000
1150 ×1400
×1000
1250 ×1800
×1550
1450 ×2000
×1550
1650 ×2200
×1550
1850 ×2500
×1750
2100 ×2650
×2000
2150 ×2800
×2100
2000 ×3000
×2260
2300 ×3200
×2500
2500 ×3500
×2800
weight(kg) 100 200 300 800 1200 1200 1500 1700 1800 2000 2400 3000

Note: The bulk specific gravity of materials is calculated as 0.6g/cm3. If it exceeds, please indicate it when ordering.
