Overview:working principleThis series of mixers are characterized by strong and efficient mixing. The two horizontal mixers in the horizontal cylinder rotate at equal speeds and counterclockwise. The specially arranged blades ensure that the materials move in …
Consultingworking principle

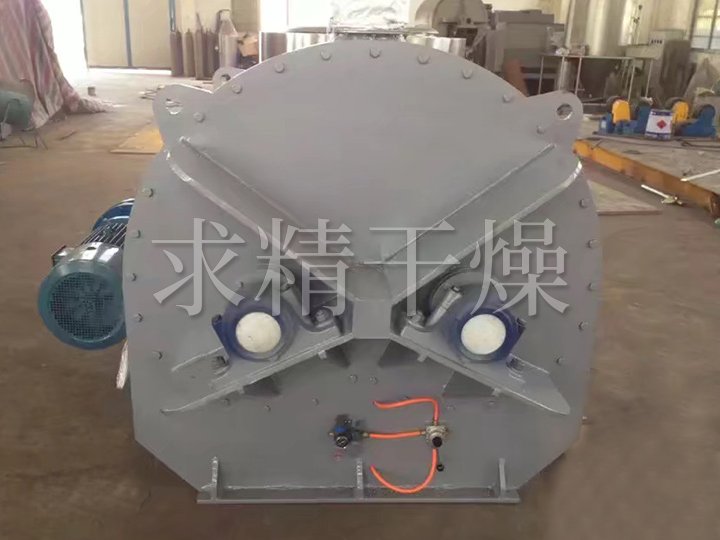

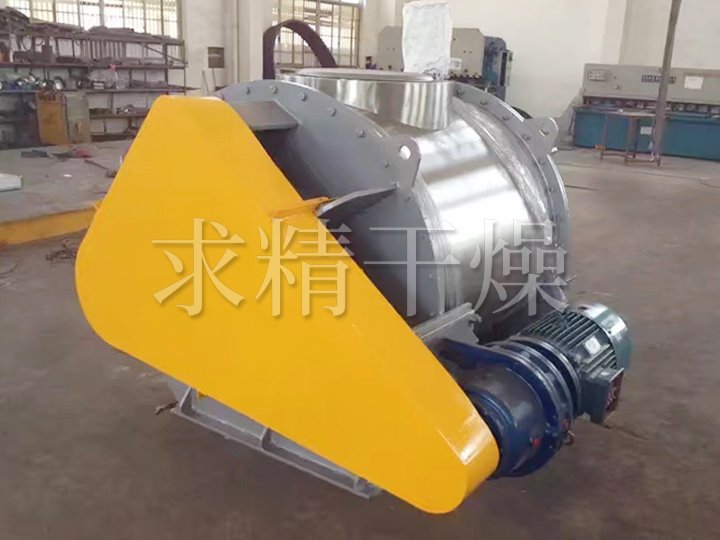

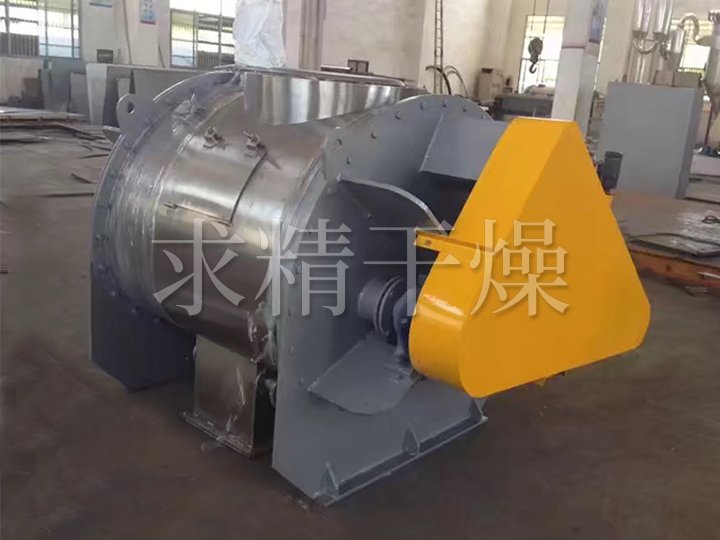

This series of mixers are characterized by strong and efficient mixing. The two horizontal mixers in the horizontal cylinder rotate at equal speeds and counterclockwise. The specially arranged blades ensure that the materials move in radial, circumferential and axial directions, forming a compound cycle. Achieve uniform mixing in a very short time.
Features
1. High mixing precision, fast speed, low energy consumption, and can be operated in a sealed manner.
2. Pneumatic, electric and manual discharging methods.
3. An atomization device can be arranged on the cylinder cover to achieve solid-liquid mixing.
Scope of application
Drying of chemicals, detergents, coatings, resins, glass silicon, pigments, pesticides, fertilizers, feed, feed additives, wheat flour, milk powder, spices, trace ingredients, coffee, salt, additives, plastics and various slurries and powders And mix.
Technical specifications
model | WZ-0.05 | WZ-0.1 | WZ-0.3 | WZ-0.5 | WZ-1 | WZ-2 | WZ-3 | WZ-4 | WZ-6 |
Mix at once kg | 24-30 | 40-60 | 120-180 | 200-300 | 400-600 | 800-1200 | 1200-1800 | 1600-2400 | 2400-3600 |
Installed power kw | 2.2 | 3 | 4-5.5 | 5.5-7.5 | 7.5-11 | 11-15 | 18.5-22 | 22-30 | 30-37 |
equipment weight kg | 250 | 360 | 750 | 880 | 2100 | 2740 | 3800 | 5100 | 6200 |
