Overview：OverviewThis machine is composed of three parts: main machine, auxiliary machine and electric control box. It has various properties such as winnowing type, no screen, uniform particle size, etc. The production process is continuous, and it is suitabl…
ConsultingOverview

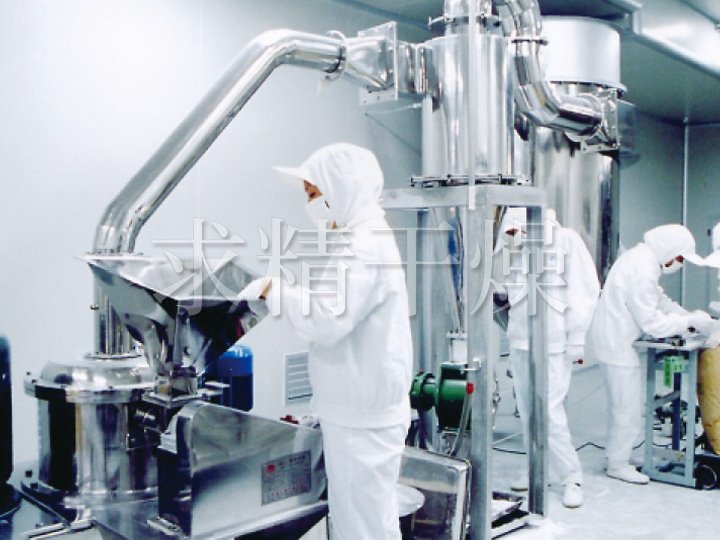

This machine is composed of three parts: main machine, auxiliary machine and electric control box. It has various properties such as winnowing type, no screen, uniform particle size, etc. The production process is continuous, and it is suitable for the crushing of brittle materials in the pharmaceutical, chemical, and food industries.
Technical specifications
| model | unit | WFJ-15 | WFJ-18 | WFJ-32 |
| Production capacity | kg/h | 10-200 | 20-450 | 60-800 |
| Feed size | mm | ＜10 | ＜10 | ＜15 |
| Discharge size | mesh | 80-320 | 80-450 | 80-450 |
| Total power | kw | 13.5 | 17.5 | 46 |
| Main speed | r/min | 3800-6000 | 3800-6000 | 3800-4000 |
| Dimensions | mm | 4200×1200×2700 | 4700×1200×2900 | 9000×1500×3800 |
| weight | kg | 850 | 980 | 1500 |
