Overview

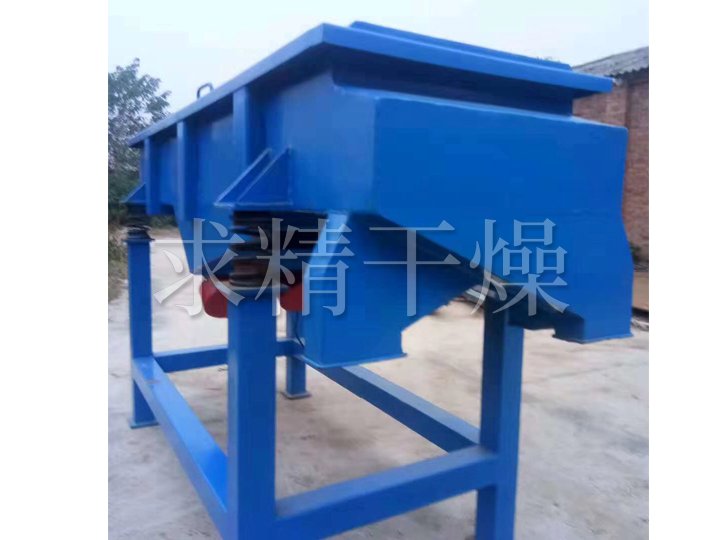

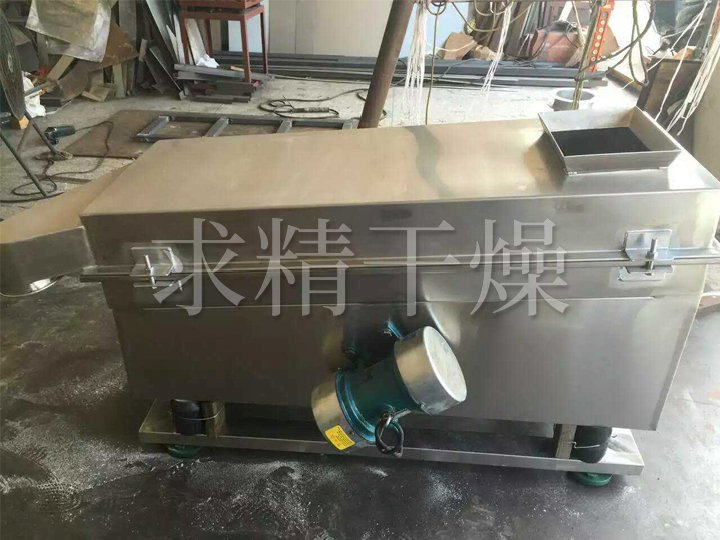

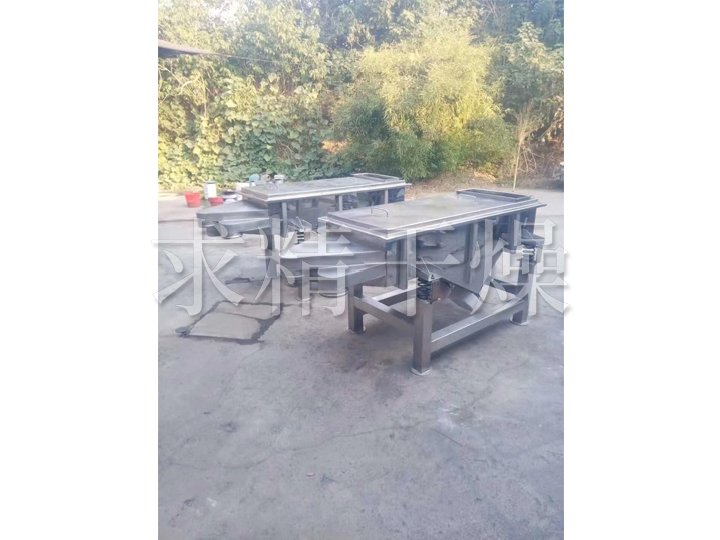

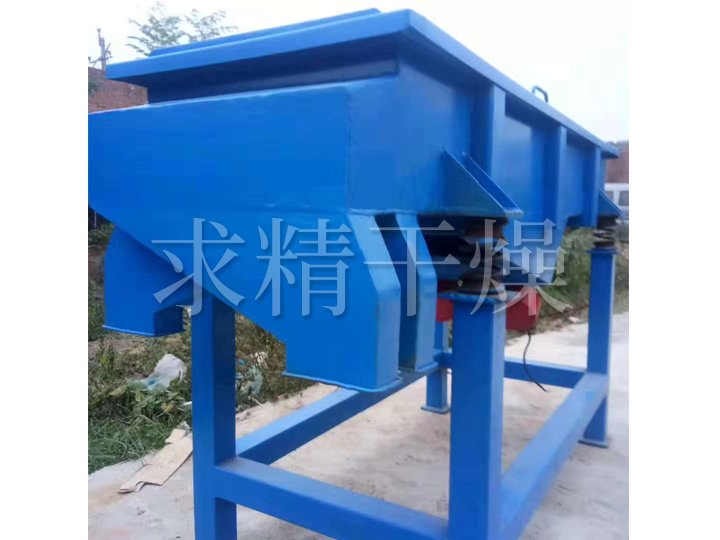

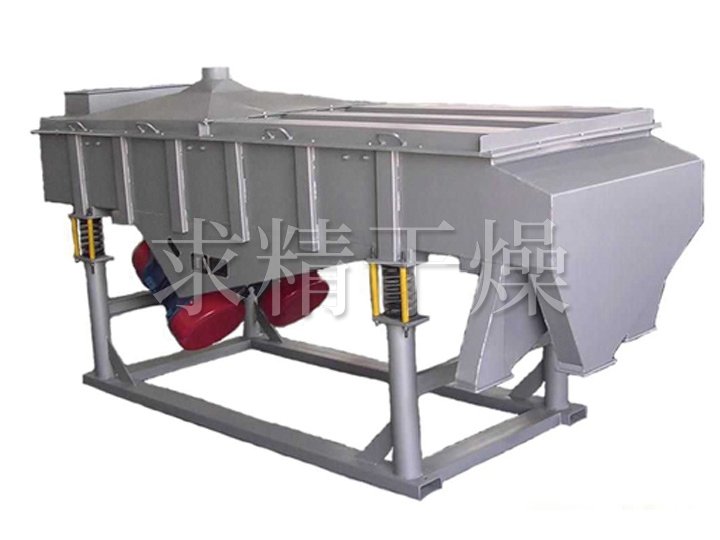

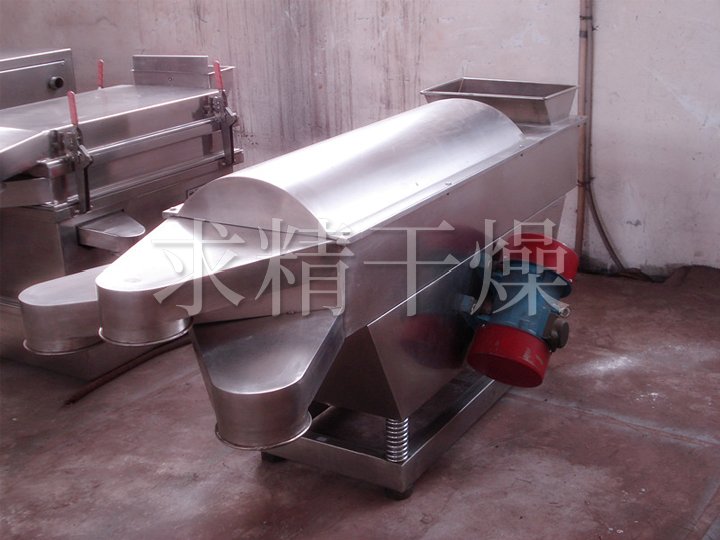

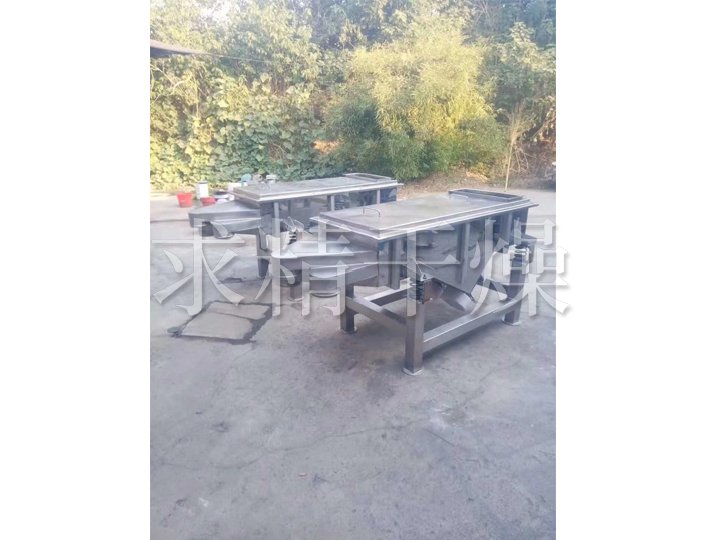

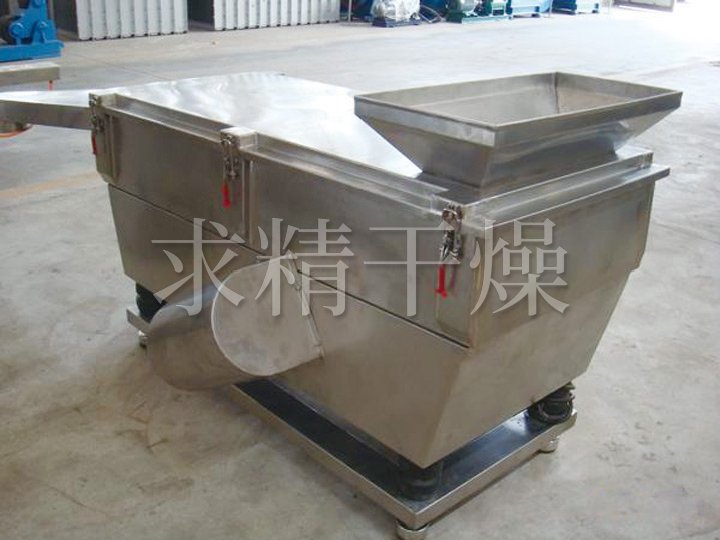

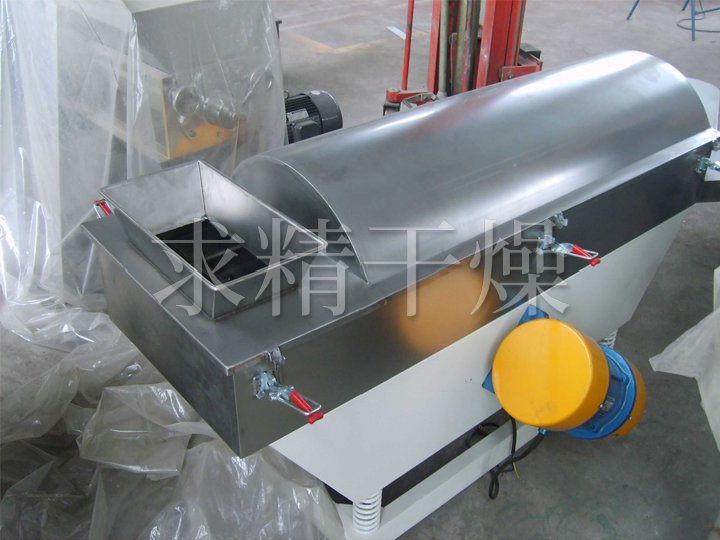

The machine is composed of three major components: inlet and outlet screen mesh box, vibration source and shock absorber. The base and the screen box are connected with 4-6 sets of soft rubber shock absorbers to be fixed up and down, and the centrifugal force is generated when the machine is turned on. The amplitude is controlled by the eccentric block and the shock absorber, so as to achieve the required working performance and make the material have a shock and looseness The screening process. It is widely used as ideal equipment for screening in pharmaceutical, food, chemical, metallurgy, electronics and other industries.
Technical specifications
| model |
Production capacity （kg/h） |
Number of mesh (mesh) |
Motor Power (kw/h) |
Vibration frequency (r/min) |
Exciting force (kN) |
Height of upper exit | Middle exit height | Lower exit height |
Dimensions (L×W×H) |
net weight (kg) |
| FS-0.5M2-X | 450 | 2-150 | 0.2×2 | 1400 | 0-2.5×2 | 800 | 680 | 500 |
1300×770 ×1060 |
220 |
| FS-0.7M2-X | 650 | 2-150 | 0.2×2 | 1400 | 0-2.5×2 | 850 | 750 | 530 |
1700×680 ×1100 |
280 |
| FS-0.8M2-X | 750 | 2-150 | 0.2×2 | 1400 | 0-2.5×2 | 850 | 750 | 530 |
1600×830 ×1150 |
320 |
| FS-1.2M2-X | 1100 | 2-150 | 0.2×2 | 960 | 0-5×2 | 880 | 760 | 520 |
1900×980 ×1220 |
450 |
