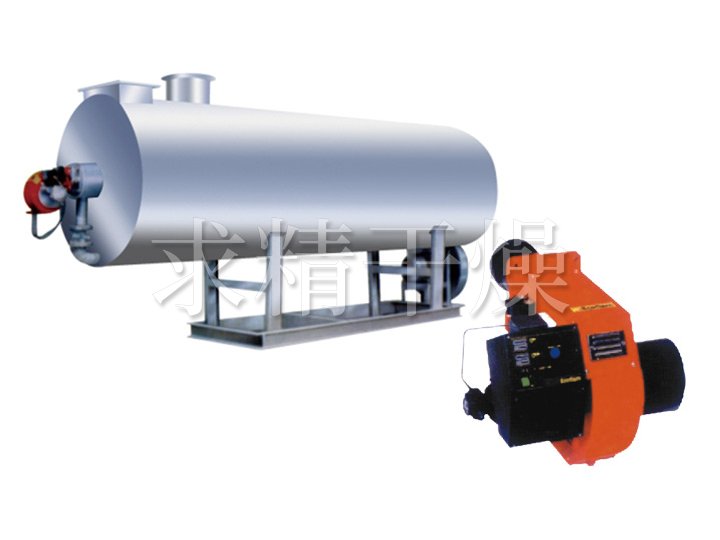

Overview：working principleThe fuel is burned through the burner to produce high-temperature gas. And with the help of a hot blast stove with enhanced heat exchange measures, the heat of the high-temperature gas is transferred to the heated air. After the heat …
Consultingworking principle

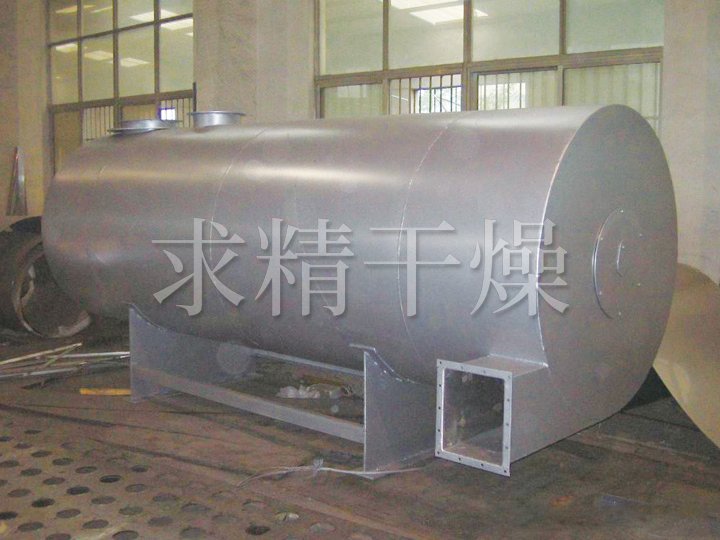

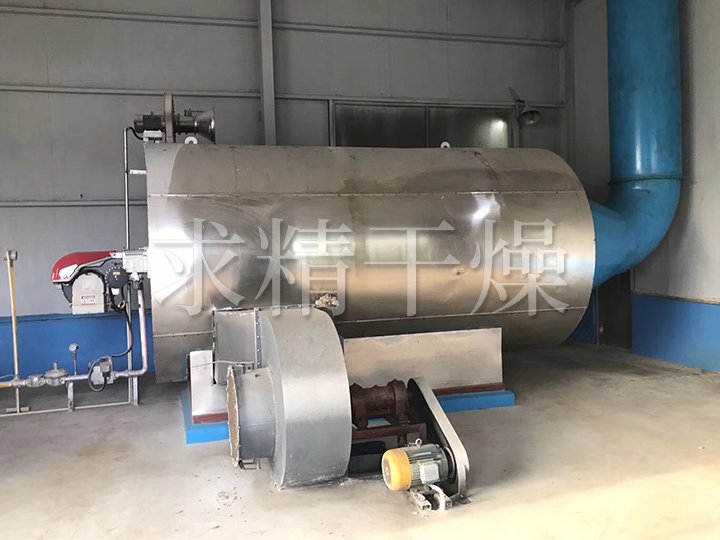

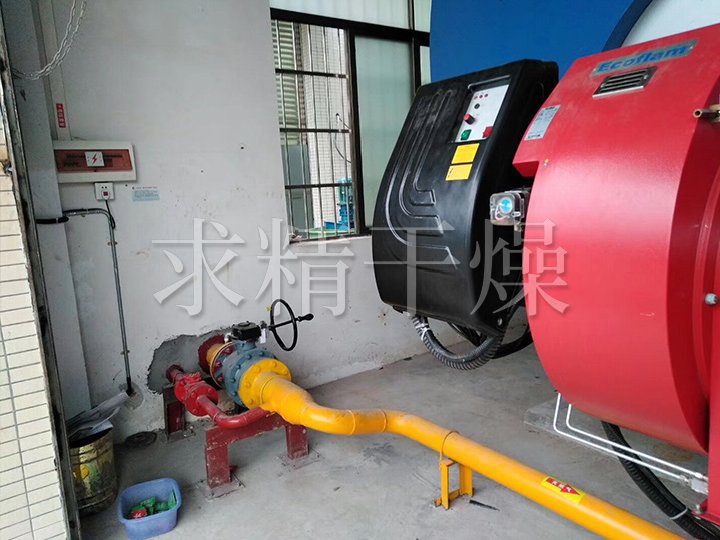

The fuel is burned through the burner to produce high-temperature gas. And with the help of a hot blast stove with enhanced heat exchange measures, the heat of the high-temperature gas is transferred to the heated air. After the heat is dissipated, the temperature of the high-temperature gas is reduced to 250°C and then discharged into the atmosphere. The air to be heated is forced into the hot blast stove through the optional blower. After the heat is absorbed, the temperature rises to the rated value and is sent out from the hot blast outlet. When the hot blast temperature reaches the upper limit of the rated temperature, the burner will automatically stop burning or switch to a small flame Combustion, when the temperature of the hot air drops to the lower rated temperature, the burner will re-ignite or switch to a large fire. The rate of heating can be achieved by adjusting the opening of the air inlet valve.
Technical specifications
| model | Burner model | Fuel quantitykg/h | Heat supply104kcal/h | Dimensions L×W×Hmm | Hot air vent L×Wmm | Gross weightkg |
| RLY1 | RIELLO.G3/DL3FS | 1.3-1.6 | 1 | 1200×1200×1600 | Φ200 | 460 |
| RLY4 | RIELLO.G10/DL10FS | 5-6.5 | 4 | 1700×1300×1600 | Φ250 | 850 |
| RLY10 | RIELLO.G20/DL23FS | 13-16 | 10 | 2300×1568×1870 | Φ300 | 2200 |
| RLY20 | RIELLO 1G/DL34FS | 26-32 | 20 | 2800×1568×1870 | Φ400 | 2670 |
| RLY30 | RL50/DL55FT | 39-48 | 30 | 3400×1568×1870 | Φ450 | 3060 |
| RLY40 | RL70/DL75FT | 52-64 | 40 | 4440×1768×2070 | Φ550 | 5600 |
| RLY60 | RL100/DL100FT | 78-96 | 60 | 5140×1868×2070 | Φ600 | 8460 |
| RLY100 | PRESS 4G/DL 120FT | 130-140 | 100 | 6440×2480×2300 | 550×600 | 12800 |
| RLY160 | P300/DL250FT | 200-270 | 160 | 7470×2920×3480 | 750×900 | 15780 |
| RLY200 | P300/DL300FT | 260-300 | 200 | 8175×2920×3480 | 750×900 | 18500 |
| RLY360 | G1510 | 480-620 | 360 | 9300×2920×3480 | 21000 |
