Consultingproduct description

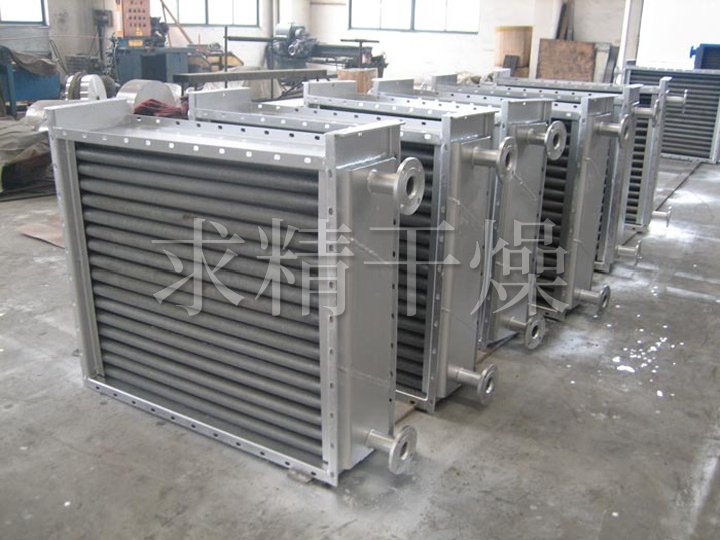

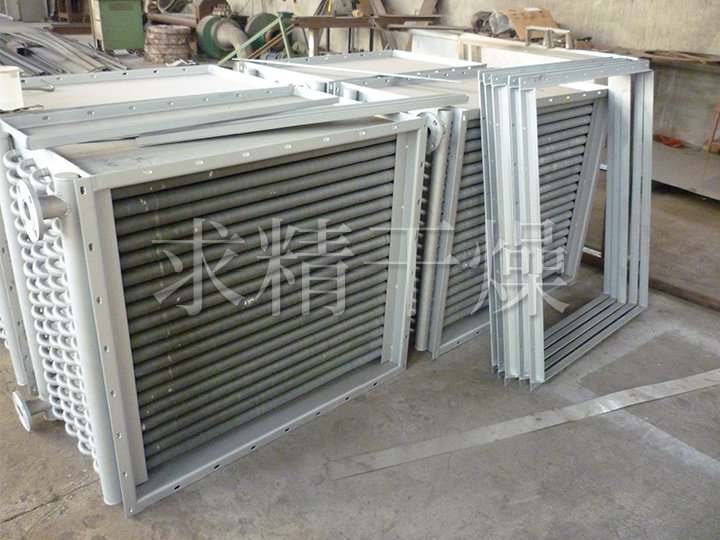

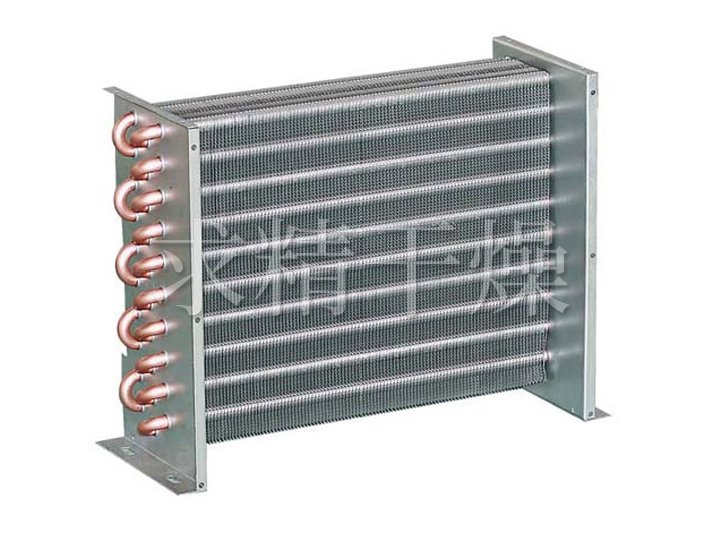

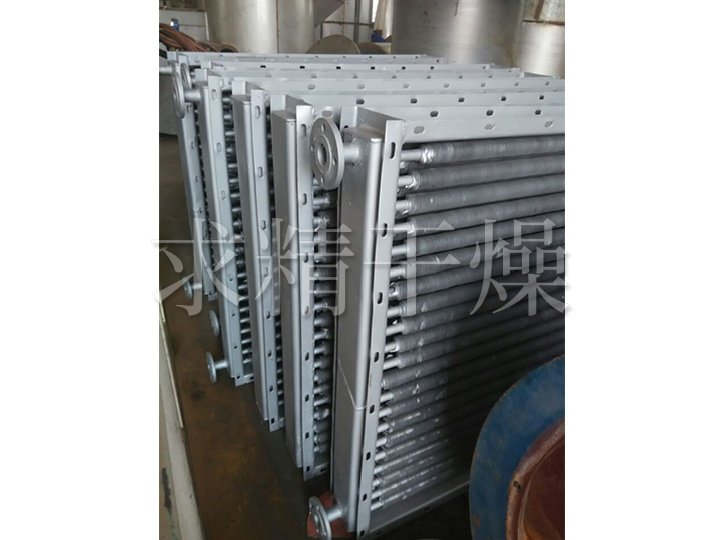

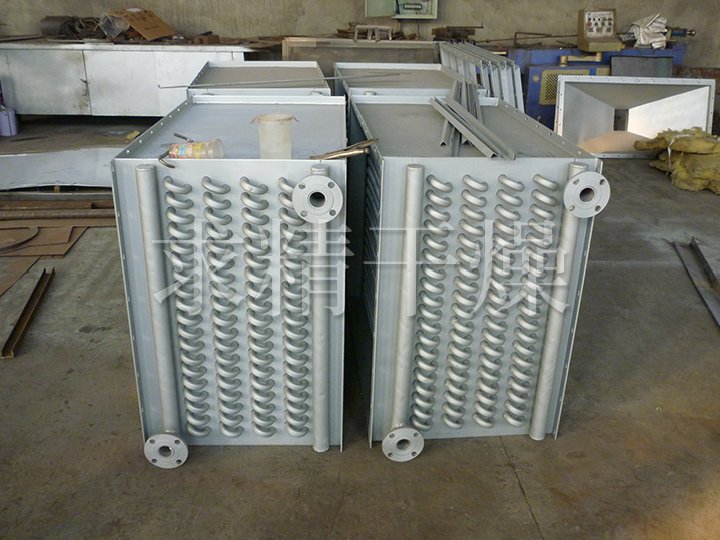

The spiral fin air heat exchanger produced by our company, also known as radiator and radiator pipe, is the main equipment in the heat exchange device that cools or heats air with cold and heat medium.
Adapt to materials
The radiator is used for hot-air heating, air conditioning, cooling, dehumidification, drying and other projects. It is suitable for steam or high temperature water to heat the air, and salt water or low temperature water to cool the air. It is widely used in air conditioning systems in industrial and mining enterprises, light industry, paper, chemical, national defense, textile, electric power, dairy, ceramics, hospitals, theaters, etc. Its structure is composed of spiral finned tubes and made of spiral finned tubes. Series products, various models have different sizes and specifications.
download Google
It can be used with various drying equipments, with various specifications and varieties. The materials used are: aluminum alloy, stainless steel, A3 steel surface galvanized, steel-aluminum composite, copper, steel pipe and aluminum winding sheet. In addition, the radiator can be used alone for heating and dehumidifying indoors and warehouses, and our company can design and manufacture for users.
◎When ordering, you must specify the product model, name, tube length, tube number and row number.
◎When ordering, if there are special specifications and requirements that need to be discussed separately, it can be used with various drying equipment. The specifications are various. The materials used are: aluminum alloy, stainless steel, A3 steel surface galvanized, steel aluminum composite, copper, steel pipe aluminum Around the film. In addition, the radiator can be used alone for heating and dehumidifying indoors and warehouses, and our company can design and manufacture for users.
Fin specifications when the heat source is hot water steam or heat transfer oil
| stainless steel | Carbon steel | aluminum | |
| Pipe diameter specification | Φ18×2 | Φ19×2 | - |
| Fin outer diameter | Φ38 | Φ39 | - |
| Fin thickness | 0.24 | - | 0.4 |
| Heat transfer area coefficient | 0.64 |
Finned tube specifications when the heat source is hot air
| Pipe diameter specification | Φ63×3 |
| Fin thickness | Φ103 |
| Fin thickness | 1.5 |
| Heat transfer area coefficient | 1.5 |
