Overview：FeaturesFast feeding speed.Long continuous working time.No leakage, clean and hygienic, suitable for clean workshops.Compact structure, convenient movement and simple operation.Equipped with quick-release clamps, easy to assemble and clean, and meet t…
Consulting
Features
Fast feeding speed.
Long continuous working time.
No leakage, clean and hygienic, suitable for clean workshops.
Compact structure, convenient movement and simple operation.
Equipped with quick-release clamps, easy to assemble and clean, and meet the requirements.
product description

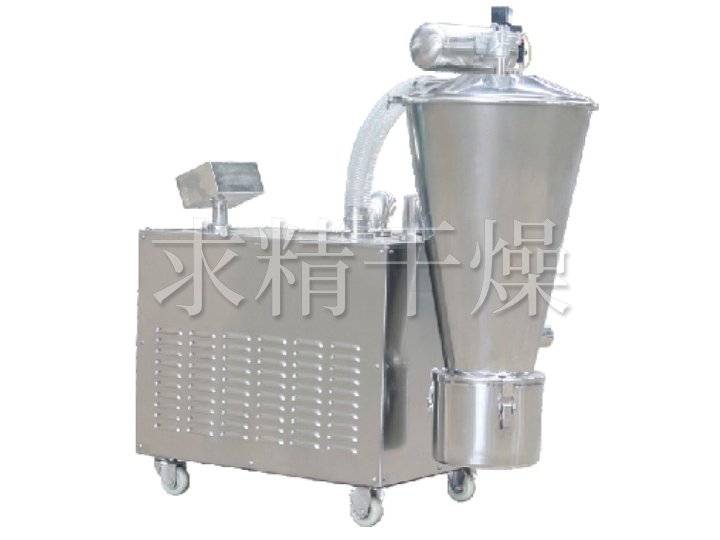

ZSL-Ⅲ series vacuum feeder is the third generation of new vacuum feeder manufactured by our company. It has fast feeding speed, long service cycle, convenient operation, clean and hygienic, and meets the requirements of "GMP".
Scope of application
*Used for powder, small granular (φ<5mm) and spherical materials.
*It is used for loading materials of various closed containers and equipment such as two-dimensional, three-dimensional, double cone, V-shaped, etc.
Technical specifications
| Model/Parameter | ZSL-Ⅲ-2.2 | ZSL-Ⅲ-3.0 | ZSL-Ⅲ-4.0 | ZSL-Ⅲ-5.5 | ZSL-Ⅲ-7.5 |
| Work pressure（Kpa） | ＜18 | ＜20 | ＜22 | ＜28 | ＜31 |
| landscape（m3/h） | 210 | 300 | 330 | 370 | 480 |
| power（kw） | 2.2 | 3.0 | 4.0 | 5.5 | 7.5 |
| Conveying capacity（Kg/h） | 900-1200 | 1200-1500 | 1500-1800 | 1800-2100 | 2100-2400 |
